Product Description

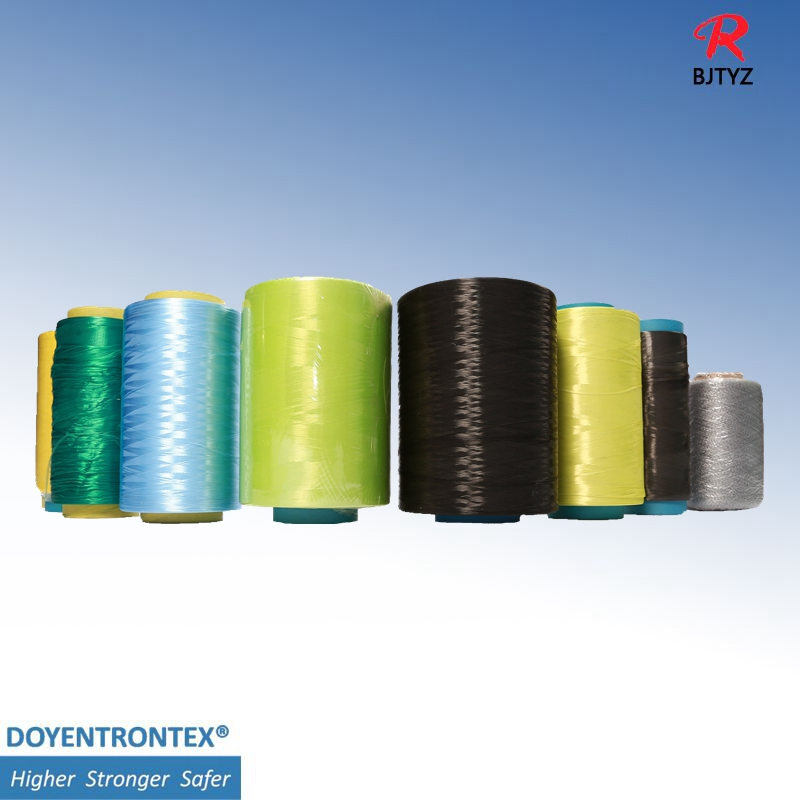

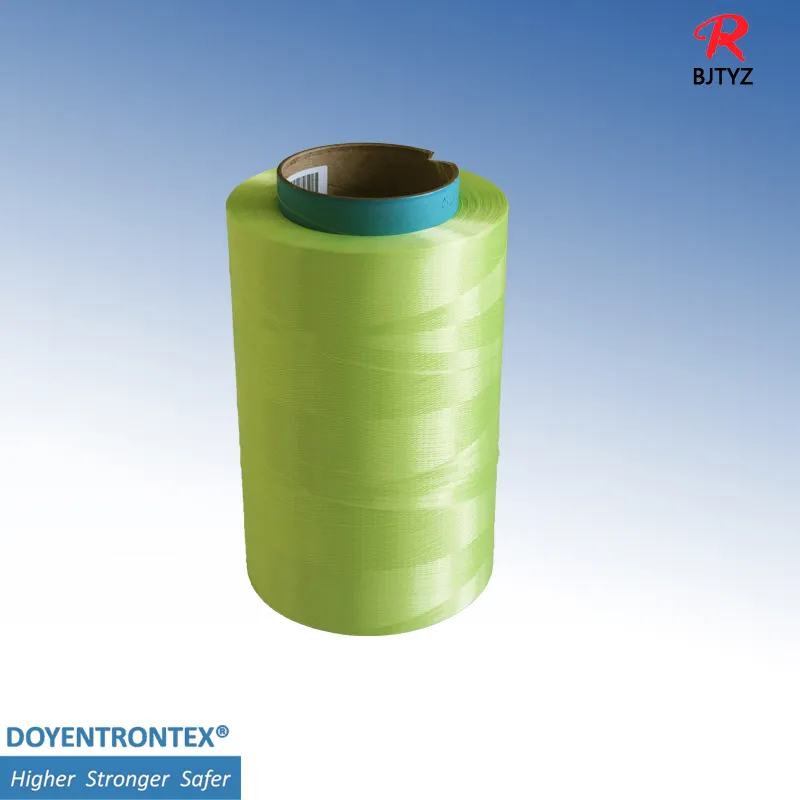

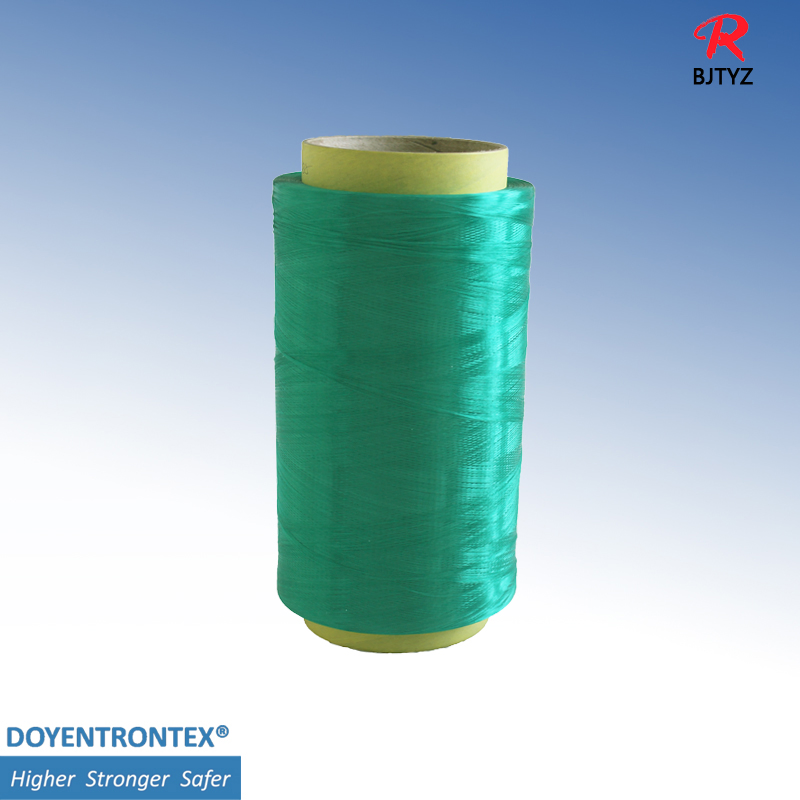

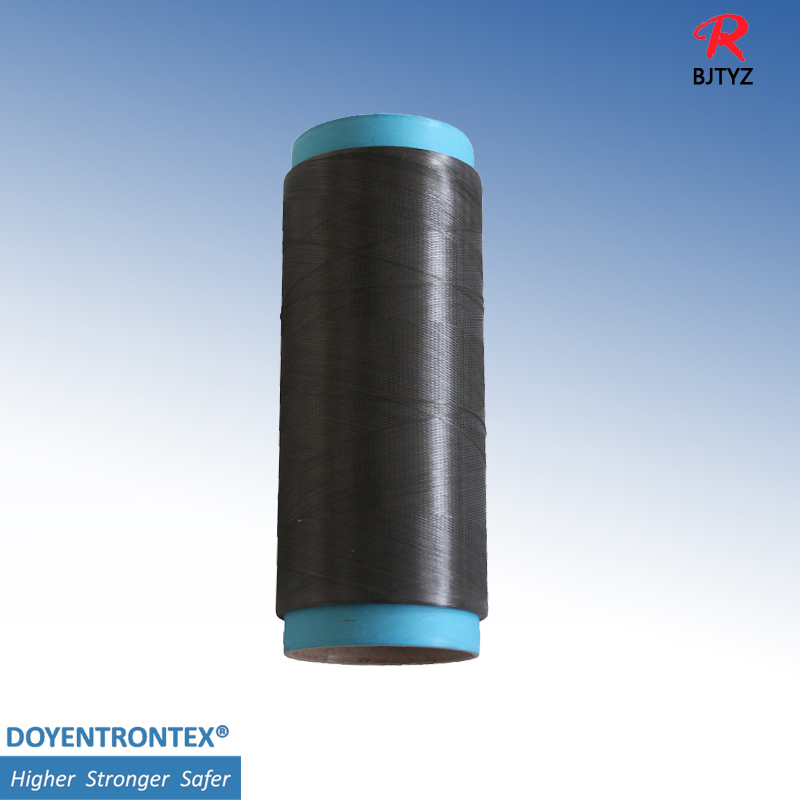

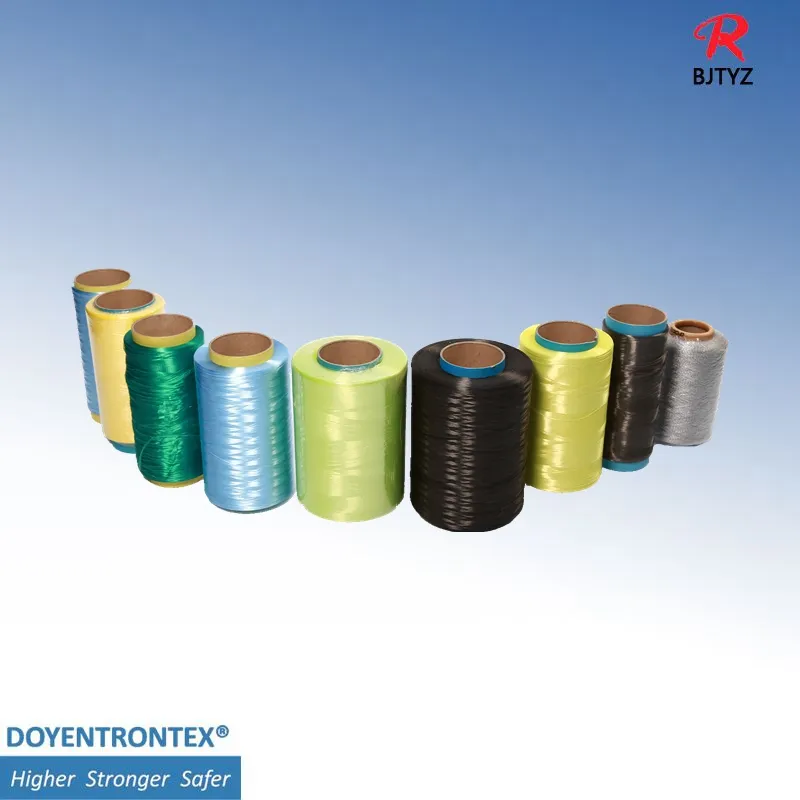

UHMWPE Fiber for Outdoor Camping Tent 1000D

Company Introduction:

Beijing Tongyizhong New Material Technology Corporation (BJTYZ), affiliated to the State Development and Investment Corporation (SDIC) and held by China SDIC International Trade Co., Ltd, is one of the largest and earliest manufacturers for UHMWPE/HMPE fiber since 1994 and its composite ballistic materials including but not limited to PE UD, aramid UD and other ballistic products.

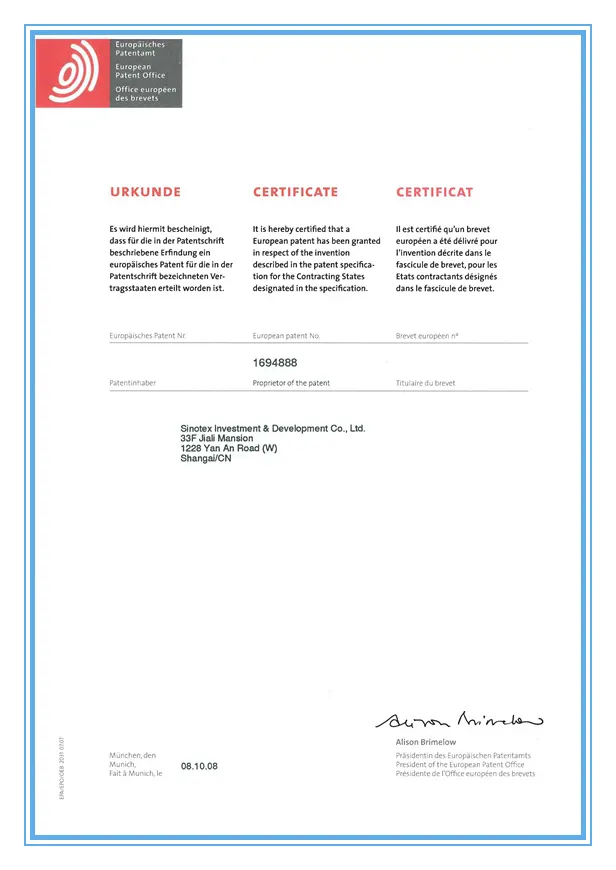

As a National High-tech Enterprise specialized in R&D, production and sales of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber and its composites, BJTYZ has become a word-famous high performance fiber supplier. The research & development center which has an innovation team of 90 technicians, including nearly 30 postgraduates. Their developmental achievement has won the Second Prize for National Science and Technology Advance in 2009, also their inventive patent has achieved the 11th China Patent Award of Excellence in 2009.

BJTYZ has formed strict production management and inspection & test system, and has got both ISO 9001: 2015 Quality Management System Certificate and GJB9001C-2017 National Military Quality Management System Certificate. DOYENTRONTEX® Fiber has been successfully used in the final maritime salvage and recovery parachutes of the "SHENZHOU Spaceship 5, 6, 7, 8, 9".

Production Introduction:

Advantage:

High strength and high modulus, the tenacity can be up to 15 times that of a good quality steel
Low density: 0.97g/cm3, lighter than water
High impact resistance
Anti-aging and anti-UV capability
Corrosion and sea water resistance
Abrasion and fatigue resistance
Low dielectric constant, high electrical resistance and a dielectric loss factor
Temperature resistance: The strength and modulus increase at low temperature

Main Applications:

Personal protection (Body armor, Bomb suppression blanket, Ballistic helmet, Ballistic plate)
Bulletproof armor (Armored vehicle, Police vehicle, Anti-explosion yacht)
Oceaneering (Drilling platform, Anchor cable, Towrope, Mooring rope, Terminal hoisting rope)
Industrial application (Cut-resistant glove, Hoisting rope, Wind power cable)
Aerospace engineering (Re-entry module of Shenzhou spacecraft recovery system, Aviation cages, High precision space craft)
Marine fishery (Commercial fishing nets, Marine aquaculture net)
Outdoor sports (Climbing rope, Parachute rope, Sailing rope, Kite line, Fishing line)

Based on UHMWPE yarns so advantageous properties, it has now become one of the high-tech materials rapidly developed in recent years and widely applied in such fields as safety protection, aviation, spaceflight, navigation, electronics, weapon, shipbuilding, building material, sports, medical treatment and so on. Products made up of the fiber include bulletproof jacket, ballistic helmet, financial vehicle, ballistic shield, tank, naval armor protection board, parachute hawser, watercraft oceaneering cordage, mountain-climbing rope, fishing net and tread, boat, gig and arrow, pat, ski, man-made nearthrosis and ligament, safety protection cover, anti-impact vessel and so on.

Note1: 1g/d=0.883cN /dtex, 1 cN /dtex=95.098MPa
Industrial Standard FZ/T 54027-2010
Note2: The industrial standard is drafted by BJTYZ.

Product Classification			Level (standard)	Tenacity g/d	Modulus g/d	Applications
Denier	Dtex	Linear density	Level (standard)	Tenacity g/d	Modulus g/d	Applications
30	33	L Low linear density	TM32,TM35	36-39	≥1320	Fishing\Sports\Medical Applications
50	55		TM32,TM35	36-39	≥1320	Fishing\Sports\Medical Applications
80	88		TM32,TM35	36-39	≥1320	Fishing\Sports\Medical Applications
100	110		TM32,TM35	36-39	≥1320	Fishing\Sports\Medical Applications
200	220		TM32,TM35	36-39	≥1320	Fishing\Sports\Medical Applications
400	440	M Middle linear density	TM32,TM35	35-38	≥1210	Protection\Textile
600	660		TM32,TM35	35-38	≥1210	Protection\Textile
800	880		TM32,TM35	35-38	≥1210	Protection\Textile
1200	1320	T Thick linear density	TM32,TM35	33-36	≥1210	Rope\Net
1600	1760	T Thick linear density	TM32,TM35	33-36	≥1210	Rope\Net
2400	2640	H High linear density	TM32,TM35	33-36	≥1210	Rope\Net

Linear density	Level	Tenacity cN/dtex	Modulus cN/dtex	Breaking elongation %
L ≥50dtex ≤222dtex	TM30	≥31	≥970	≤4
	TM32	≥33	≥1150
	TM35	≥36	≥1200
M ≥222dtex ≤888dtex	TM30	≥30	≥950
	TM32	≥32	≥1050
	TM35	≥35	≥1100
T ≥888dtex ≤2222dtex	TM30	≥28	≥925
	TM32	≥30	≥1000
	TM35	≥33	≥1050
H ≥2222dtex ≤3555dtex	TM30	≥25	≥800	≤4
	TM32	≥28	≥900
	TM35	≥32	≥1025

Description

UHMWPE is a super engineering plastic that is probably not as well-known as some other engineering plastics but can out perform its relatives in a number of important areas. UHMW (aka UHMW-PE) offers a combination of excellent properties outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating properties and excellent mechanical properties, even in cryogenic conditions. UHMW product reduces noise from impact & vibration. It is a self-lubricating material that is chemical, corrosion, and wear-resistant. And its food safe. The weight is light, the is 1/8 of the rolled steel. Life is higher than steel. The wear resistance is 3 to 7 times of carbon steel and stainless steel.

Bar Code:
Each bobbin of our UHMWPE fiber has a bar code inside, throught which we could track the data record on central computer and learn all the property, producing date, spinning date, machine status, etc. This code is the "ID card" of each bobbin of fiber throughout its life.

Forwarder:
We could accept your forwarder to arrange the delivery.
While if needed, we could recommend forwarder to you

FAQ:
Q1. Are you a factory?
A: Yes, we are the factory.

Q2. How about your delivery time?
A: Normally, if our stock enough we will send it to you after receiving the deposit. It depends on the items and the quantity of your order.

Q3: Can you arrange production according to samples?
A: Yes, we can produce by your samples or drawing.

Q4: What is your sample policy?
A:If the quantity is small, the samples will be free, the customers just should pay the express fee.

Q5: Do you test your goods before delivery?
A:Yes,our quality control have test before delivery.
