Stainless Steel Shackle Rigging Hardware U-Type

Product Description

Supply 304 316 d and U ring shackle European type DEE shackle

Stainless Steel Shackle Rigging Hardware U-Type
PARAMETERS:

ITEM NO.	WEIGHT(Kg)	WLL(T)	B.L(T)	A	C±2	E±0.5	D±0.5	L±2	φ±0.2	φ′±1
SLR365-3/16	0.02	0.33	1.98	9.7±1	18.7	4.8	4.8	34.2	6	14.2
SLR365-1/4	0.04	0.5	3	12±1	22	6.35	6.35	40.4	7.5	15.5
SLR365-5/16	0.07	0.75	4.5	13.5±1	25.6	8	8	48.5	9.5	19
SLR365-3/8	0.12	1	6	16.8±1.2	30	9.7	9.7	58.5	11.5	23
SLR365-7/16	0.19	1.5	9	19±1.2	35.4	11.2	11.2	67.6	13.4	27
SLR365-1/2	0.27	2	12	20.6±1.2	40.2	12.7	12.7	77	15.5	30
SLR365-5/8	0.58	3.25	19.5	27±1.2	50	16	17.5	95.5	19.5	38
SLR365-3/4	0.98	4.75	28.5	32±1.5	60.5	19	20.6	116.6	21.5	46
SLR365-7/8	1.53	6.5	39	36.6±1.5	71	22.4	24.6	135.5	25	53
SLR365-1	2.14	8.5	51	43±1.5	79	26	27	150.8	28	60.5
SLR365-1-1/8	3.17	9.5	57	46±1.5	90	28.7	31.8	172.2	29.5	68.3
SLR365-1-1/4	4.45	12	72	51.6±2	97	32.7	35	190.5	35.7	76.2
SLR365-1-3/8	5.57	13.5	81	57±2	107	36	35	210.3	39	84
SLR365-1-1/2	7.22	17	102	60.5±2	121	38	41	230.1	39	92.2
SLR365-1-3/4	13	25	150	73.2±3	146	44.5	53.8	278.6	48	106.4
SLR365-2	20.2	35	210	82.5±3	169	53	61	324	56	127

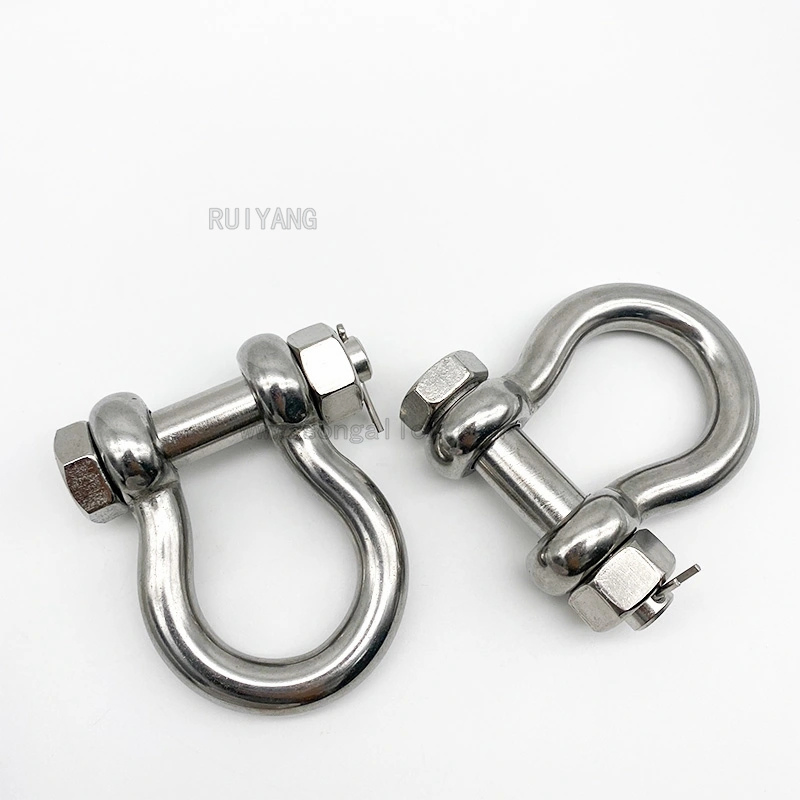

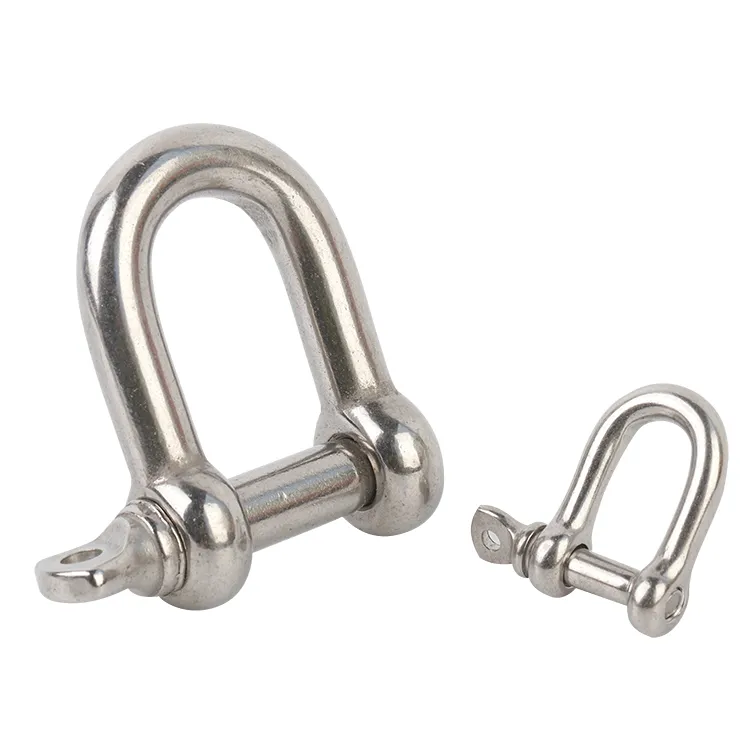

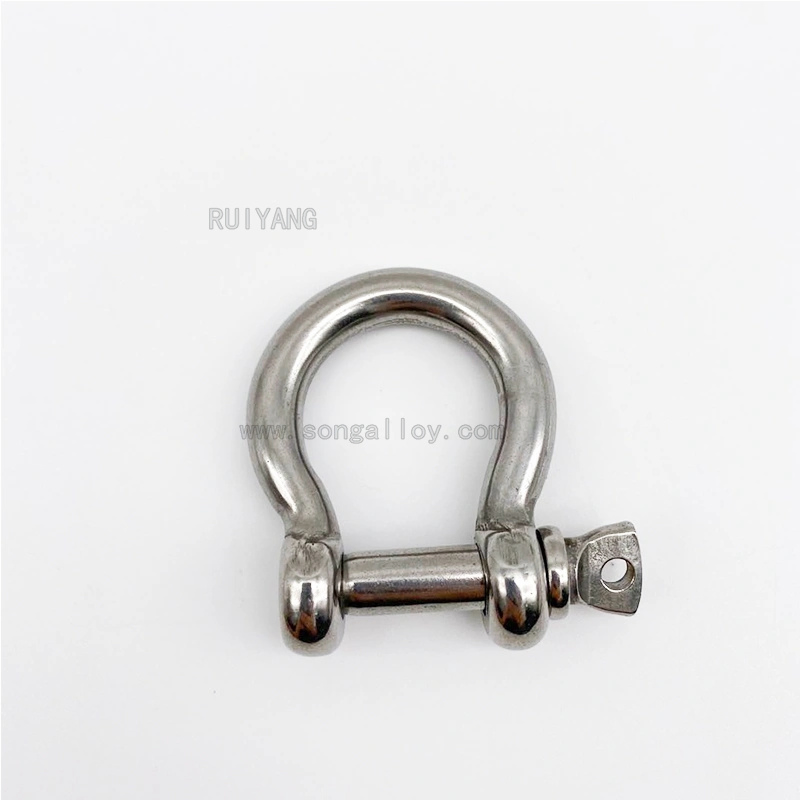

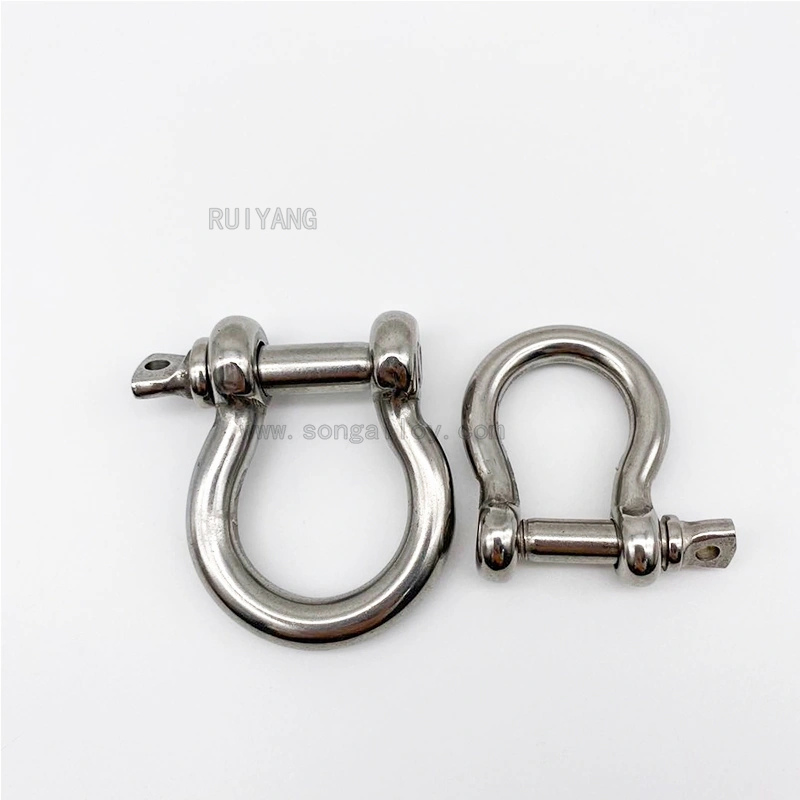

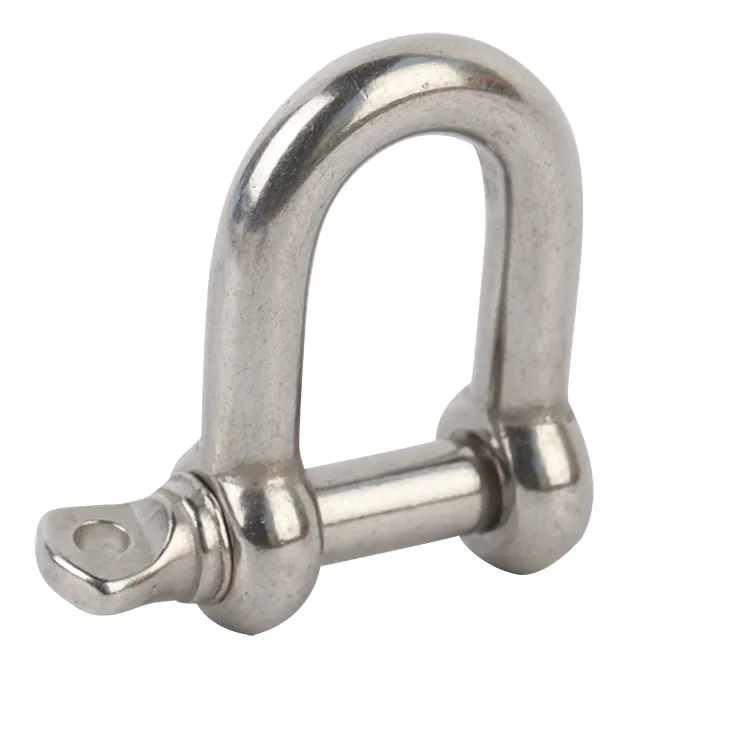

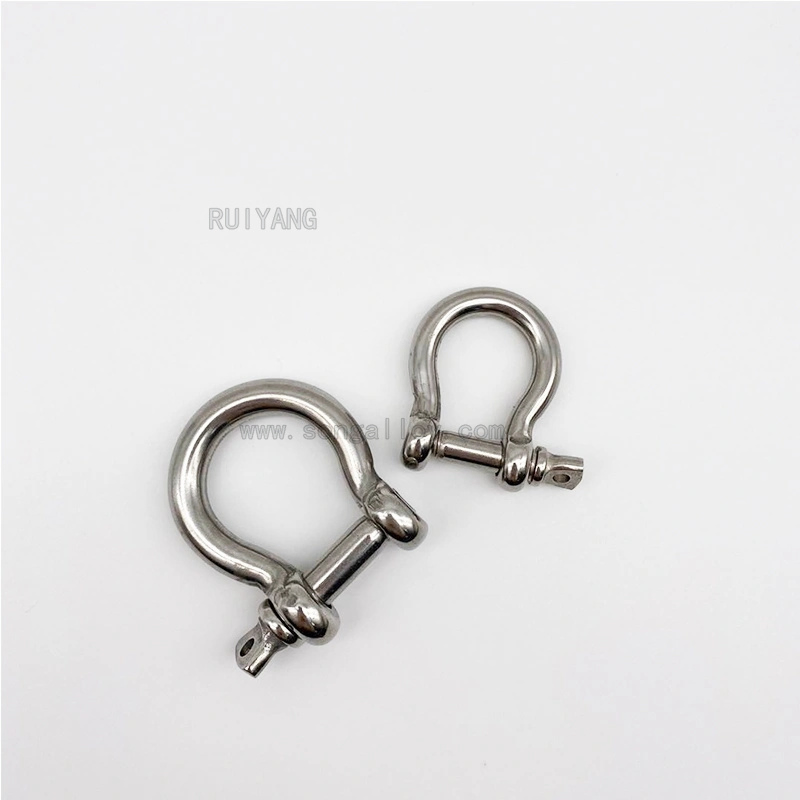

Product Display:
Stainless Steel Shackle Rigging Hardware U-Type

Transport packaging:
Stainless Steel Shackle Rigging Hardware U-Type

Our company is focused on stainless steel Shackle, rigging, wire rope, clamps, snap hooks, fasteners cam lock coupling,marine hardware with well-equipped testing equipment and strong technical force.

With a wide range, good quality and reasonable prices , our products are extensively used in ships,oil or water pipe line and other industries.

Also the products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
If you are interested in our products, please contact us!
