How to Choose the Best Milling Inserts for Precision Machining

Milling inserts are essential cutting tools used in CNC milling and machining operations, designed to provide high efficiency, precision, and durability. Unlike traditional single-piece milling cutters, milling inserts are replaceable cutting edges that allow machinists to achieve high-performance machining while minimizing downtime and tool costs.

In industries such as automotive, aerospace, mold manufacturing, and metal fabrication, the demand for accurate, high-speed machining has increased exponentially. Milling inserts play a critical role here by offering:

• Cost efficiency – Replaceable inserts reduce the need to replace entire tool bodies.

• High material removal rates – Optimized for fast, aggressive cutting.

• Extended tool life – Advanced coatings and carbide grades enhance durability.

• Precision machining – Stable insert geometry ensures consistent tolerance control.

Why Milling Inserts Are Preferred Over Solid Milling Tools

Unlike solid end mills or traditional cutters, milling inserts provide flexibility and cost savings:

• When an insert edge becomes dull, you only replace the insert, not the entire tool.

• Different insert geometries can be used on the same cutter body for varied materials.

• Special coatings improve wear resistance, enabling extended uninterrupted machining.

This adaptability makes milling inserts a preferred solution in high-volume manufacturing where uptime and precision directly impact profitability.

How to Select the Right Milling Inserts for Your Application

Choosing the correct milling insert requires understanding several technical parameters, including material compatibility, insert shape, chip control, and coating types. The wrong insert can lead to poor surface finish, excessive tool wear, and reduced productivity.

Key Factors to Consider

Recommended Selection Process

1. Define Your Material Type – Different materials require specific insert coatings and geometries.

2. Select Appropriate Insert Shape – For roughing, round or octagonal inserts perform best, while square inserts are ideal for finishing.

3. Evaluate Insert Grade – Choose carbide grades for general-purpose machining, CBN for hardened steels, and PCD for non-ferrous materials.

4. Check Cutting Conditions – High-speed machining may require PVD-coated inserts, while heavy interrupted cuts perform better with uncoated carbide.

5. Consider Surface Finish Requirements – Sharp-edged inserts deliver superior finish but may wear faster on hard materials.

By aligning these factors, machinists can maximize cutting efficiency, extend insert life, and achieve the desired surface quality.

What Are the Different Types of Milling Inserts and Their Applications?

Modern milling operations require a variety of insert designs to accommodate different materials and machining strategies. Inserts are classified by shape, material, and edge geometry, each suited for specific tasks.

Types of Milling Inserts by Shape

• Square Inserts – Provide four cutting edges, ideal for slotting and face milling.

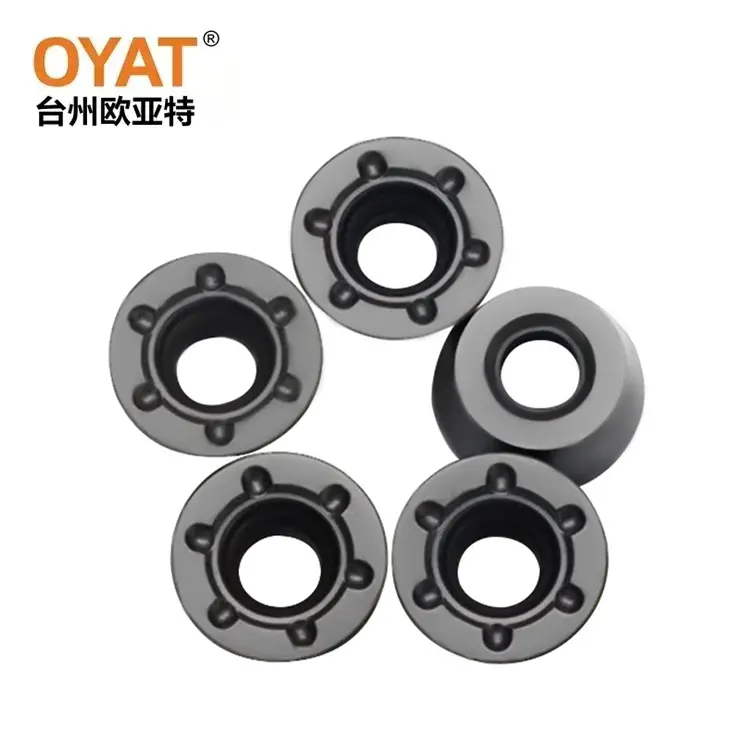

• Round Inserts – Perfect for high-feed milling and heavy interrupted cuts.

• Triangular Inserts – Offer three cutting edges, commonly used in profiling operations.

• Octagonal Inserts – Eight cutting edges for cost-effective machining of softer materials.

• Diamond Inserts – Best suited for precision finishing and profiling.

Types by Material Grade

• Carbide Inserts – Most widely used for general-purpose milling due to their hardness and toughness.

• Ceramic Inserts – Excellent for high-speed machining of heat-resistant alloys.

• CBN (Cubic Boron Nitride) Inserts – Designed for hardened steels above 55 HRC.

• PCD (Polycrystalline Diamond) Inserts – Optimized for aluminum, composites, and non-ferrous materials.

Types by Coating Technology

• TiAlN Coating – High thermal resistance, suitable for high-speed dry cutting.

• TiCN Coating – Excellent for stainless steel and hard materials.

• Uncoated Inserts – Used when edge sharpness is more important than heat resistance.

Milling Inserts for Different Machining Strategies

• Face Milling – Requires inserts with high radial cutting strength and smooth chip evacuation.

• Slot Milling – Demands sharp inserts with stable chip control for tight spaces.

• Shoulder Milling – Needs inserts designed for 90° walls and precise corner finishing.

• High-Feed Milling – Prefers round or specific high-feed insert designs for increased material removal rates.

Maximizing Performance and Extending Tool Life

The performance of milling inserts depends not only on selection but also on proper usage. Even the highest-quality insert can fail prematurely if incorrect cutting parameters are applied.

Best Practices for Milling Insert Performance

• Optimize Cutting Speeds and Feeds – Follow manufacturer recommendations to balance tool life and productivity.

• Use Proper Coolant Techniques – Minimize heat buildup and prevent premature wear.

• Ensure Rigid Setup – Stable fixtures reduce vibrations, extending insert life.

• Monitor Tool Wear Patterns – Regular inspections help detect issues early and avoid sudden tool failure.

• Apply Correct Insert Edge Prep – Honed edges increase durability, while sharp edges deliver better finishes.

Milling Inserts FAQ

Q1: How do I know when to replace a milling insert?
A: Replace inserts when you notice deterioration in surface finish, increased cutting forces, or excessive vibration. Dull inserts can generate heat, affecting both tool life and workpiece quality.

Q2: What’s the difference between coated and uncoated milling inserts?
A: Coated inserts, such as TiAlN or TiCN, provide better wear resistance and heat tolerance, making them ideal for high-speed and dry cutting. Uncoated inserts are preferred for softer materials or when extreme sharpness is required for precision finishing.

Final Thoughts and Brand Introduction

Selecting the right milling inserts is critical for achieving precision, maximizing productivity, and reducing operational costs. By understanding insert geometries, materials, and coatings, manufacturers can optimize machining performance across diverse applications.

At OYT, we specialize in supplying high-performance milling inserts engineered for precision machining and extended tool life. Our product range covers a variety of materials, geometries, and coatings, ensuring compatibility with different CNC milling operations. Whether you require carbide inserts for general machining or PCD solutions for non-ferrous materials, we deliver solutions tailored to your needs.

For more information about our milling inserts or to request a quote, contact us today and let OYT help you achieve next-level machining efficiency.
